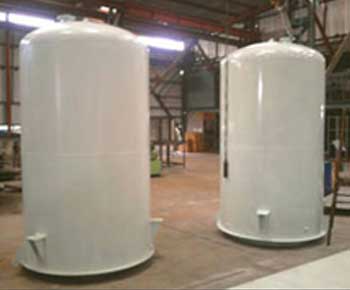

Pressure Vessels
Fabricated using quality tested raw materials like MS and SS, Our pressure vessels are designed for the purpose of holding liquids/gases at a definite temperature & pressure, different from the atmospheric pressure. Known for its properties of dimensional accuracy, durability and resistance from corrosion, the product can be tailored as per the specific size or other specifications of our clients
Storage Tanks
Storage tanks developed using high quality MS and SS material. Our tanks are widely used in various industrial and commercial applications for the purpose of storing liquids and gases. Widely appreciated for its features of corrosion resistance, high strength, and robust construction, the product can be customized as per the client’s specifications.

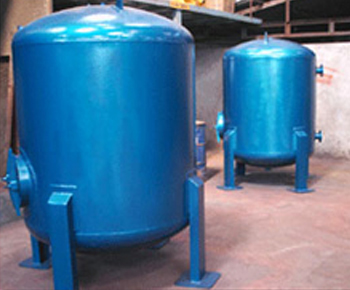

Air Receiver
Air receivers used extensively for dual purpose of storing compressed air and releasing it when the compressor is idle. Also, these receivers are used for moisture trap and pulsation damper.
Our range of air receivers:
Vertical air receivers
Painted air receivers
Horizontal air receivers
Galvanized air receivers
| Volume | Pressure | Diameter | Length | Thickness |
|---|---|---|---|---|
| 20 m3 | 7 bar | 2.6m | 5 m | 16 mm |
| 6 m3 | 7 bar | 1.65 m | 3.5 m | 10 mm |
| 5 m3 | 7 bar | 1.65 m | 3 m | 8 mm |
| 3 m3 | 10 bar | 1.3 m | 2.0 m | 8 mm |
| 3 m3 | 7 bar | 1.35 m | 2.9 m | 6 mm |
| 2 m3 | 10 bar | 1.25 m | 2.4 m | 8 mm |
| 1.5 m3 | 7 bar | 1.06 m | 2.3 m | 6 mm |
| 1 m3 | 10 bar | 0.95 m | 2 m | 6 mm |
| 1 m3 | 7 bar | 0.95 m | 2 m | 6 mm |
| 0.5 m3 | 7 bar | 0.75 m | 1.6 m | 6 mm |
| 0.3 m3 | 10 bar | 0.55 m | 1.5 m | 5 mm |
Trouser Ductings
Our extensive industry experience and the expertise of our workforce enable us to offer our clients with intricate ducting fabrication services. We also do customized fabrications as per our client’s requirements. With the handling capacity of many tons, we can provide custom fabrication of special types of products for any industry at our units.
